GENERATOR AND SWITCHGEAR CONTROL

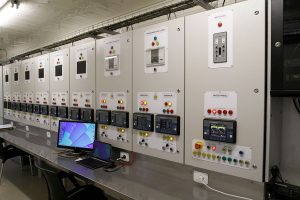

gs1-CP01-MG_4355-control-panel

gs2-CP02-DSC06863

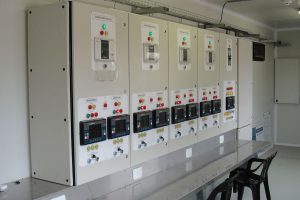

gs3-CP04-DSC07830

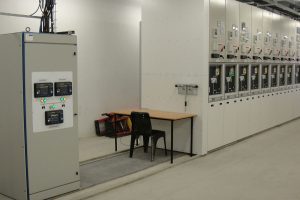

gs4-CP07-DSC07824

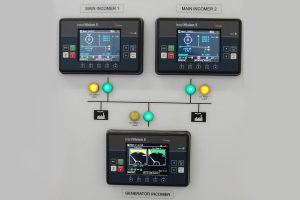

gs5-CP03-DSC08095

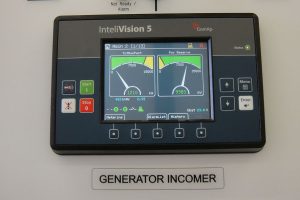

gs6-CP06-DSC07821

gs7-CP08a-DSC01962

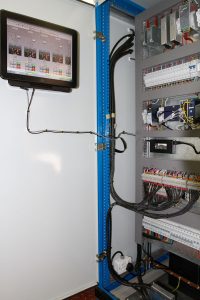

gs8-CP05-MG_4568

MEDIUM VOLTAGE SWITCHGEAR AND STEP-UP TRANSFORMERS

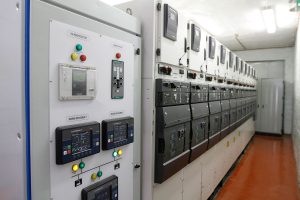

11kV system; Schneider GenieEvo switchgear. Replaced client’s outdated switchgear with Schneider solution consisting of two mains incomers; one generator incomer; and eight plant feeders. Incomers controlled by ComAp control system. Synchronous (soft) transfer implemented

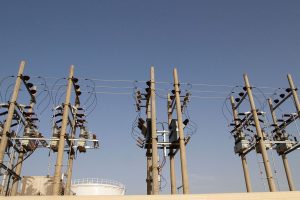

33kV overhead switchgear design based on ABB OVR reclosers (deployed as magnetically actuated circuit breakers). Effectively one vacuum circuit breaker per step-up transformer onto a common overhead line

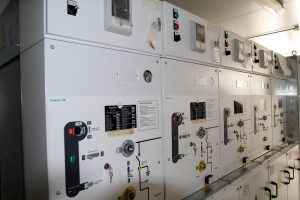

33kV containerized switchgear based on Schneider Flusarc 36 gas-insulated modules. Four step-up transformer incomers; one bus metering unit; and one output feeder to customer’s main intake substation

11kV transfer system based on Schneider GenieEvo switchgear. One Utility incomer; one generator system incomer; and one feeder to client’s existing switchgear. Incomers controlled by ComAp controller. Synchronous (soft) transfer implemented

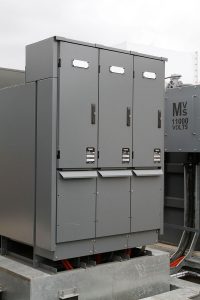

11kV outdoor switchgear; Schneider Premset outdoor vacuum switchgear; two step-up transformer incomers; and one feeder to customer’s intake substation

11kV system; ABB SafePlus gas-insulated switchgear. Two step-up transformer incomers; one mains incomer; two bus metering units; two CB-type motorized vacuum circuit breakers; and one cable feeder to customer’s ring main unit. The two CB-modules are controlled by ComAp control system. Synchronous (soft) transfer implemented

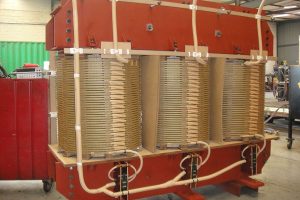

Voltage step-up power transformer during construction. 690V : 33kV; 4MVA; YNd1

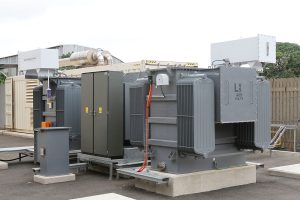

Two 4MVA voltage step-up transformers together with outdoor protection relay assembly and Neutral Earth Resistor ground reference. Voltage step-up ratio is 400V:11kV

FUEL AND OIL SYSTEMS

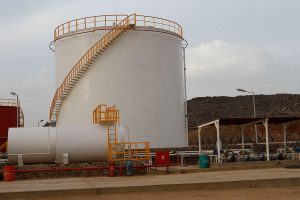

Fuel and oil system specified by Indulec. This site is in North Africa and construction of the tanks was by local contractors to satisfy local employment requirements during the power plant construction. The red tank in the background is a water tank for the power plant’s firefighting system. The large tank is for diesel with the two horizontal tanks for lubrication oil and recovered used engine oil. The fuel offloading bay can service two delivery vehicles simultaneously

Containerized fuel and oil conditioning system consisting of triple redundant diesel fine filtration and coalesce vessels, dual redundant diesel circulation pumps and triple redundant oil delivery pumps. System design allows for conditioning of two 1.3Ml bulk diesel tanks and one 24kl bulk oil tank

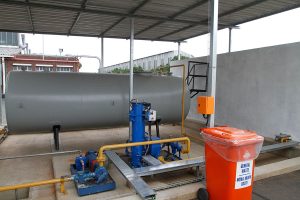

Horizontal diesel tank combined with single redundant diesel pump and filter kit. Filter elements are a fine filter followed by coalesce element for single pass water removal

Another example of horizontal diesel tank combined with single redundant diesel pump and filter kit

Containerized fuel and oil conditioning system consisting of single redundant diesel fine filtration and coalesce vessels, a diesel circulation pump and an oil delivery pump. The system design is for a standby power plant which negates the need for redundancy in the bulk diesel and oil handling equipment

LARGE POWER PLANT SITE CONSTRUCTION

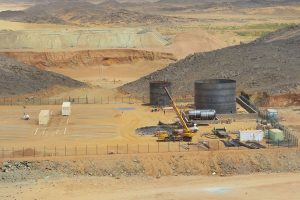

Continuous duty power plant under construction in North Africa. Most of the work on-site was contracted to local contractors

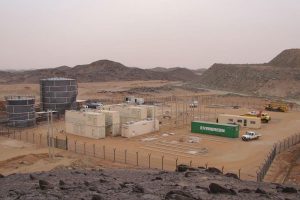

Tank welding completed. Four generators in position. Step-up transformers also in position. Switchgear and control containers still outstanding

First of two diesel tanks plus firefighting system’s water tank nearing completion. MV switchgear installation still in progress

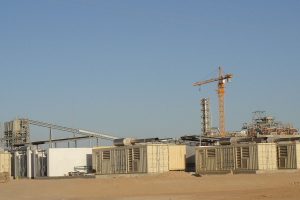

14MVA/33kV standby power plant under construction with customer’s main processing plant also under construction in the background

LV cable entry into one of the 4MVA step-up transformers

EXAMPLES OF COMPLETED INSTALLATIONS

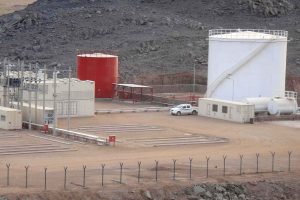

Power plant in North Africa – first phase operational except for the fire system pump and foam system. 6MVA continuous duty with planned expansion to 24MVA continuous duty

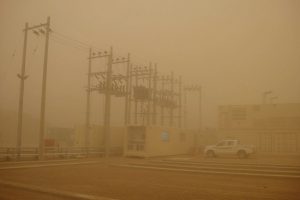

Same site in North Africa functioning well during a typical sand/dust storm

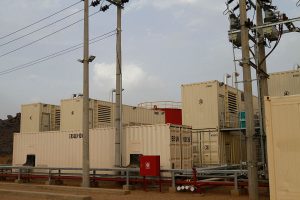

Another picture of the site in North Africa

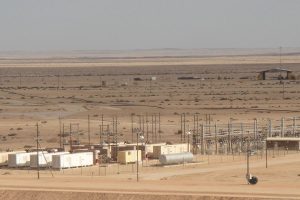

12MVA prime power standby power plant next to 33kV mains intake sub-station

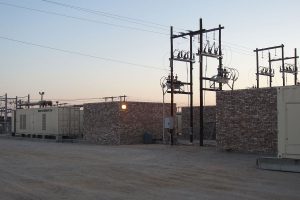

Another picture of the 12MVA prime power standby power plant (previous picture) next to 33kV mains intake sub-station. Power reticulation primarily via overhead lines, hence the decision to use overhead switchgear for the standby power plant

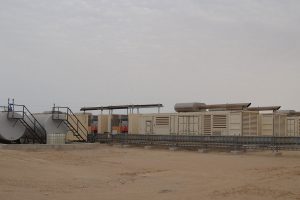

14MVA prime power standby power plant in Namibia. Power delivery at 33kV via above ground MV cable

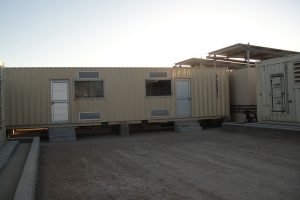

Control container of the 14MVA power plant

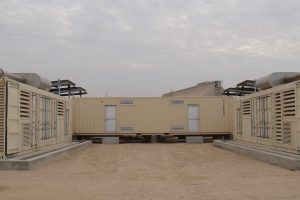

33kV switchgear container of the 14MVA power plant

11kV “Energy Centre”. Building layout design by Indulec. Diesel tank room, generator room and MV switchgear room

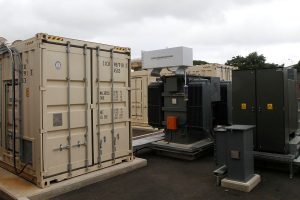

4MVA/11kV installation in South Africa. Standard 400V alternators

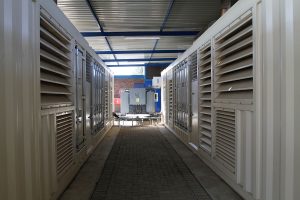

Another 4MVA/11kVA installation based on our proven design (similar to the previous picture)

Same site as in the previous picture (4MVA/11kV)

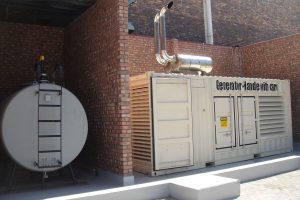

6m containerized solution - 1MVA/400V standby generator installed in South Africa

GENERATOR MANUFACTURING

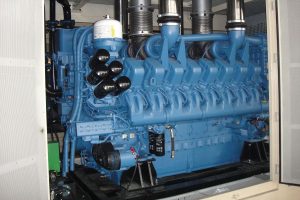

V16 continuous duty MTU engine in containerized enclosure

All engine wiring and diesel/oil lines at floor level on both sides of the engine

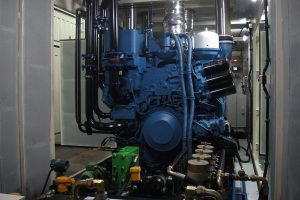

Engine 'services' in front of the engine including diesel filters, diesel cooler, small oil replenishment tank, fuel and oil intake solenoids, flow metering units, pre-lube pump, etc.

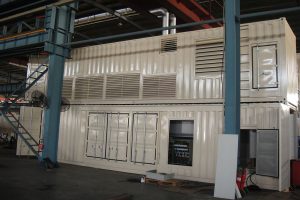

New generator containers manufactured according to our design by an OEM container supplier

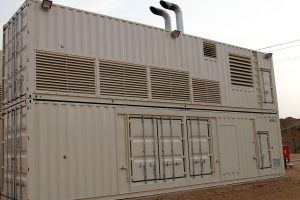

Containerised MTU genset commissioned on site

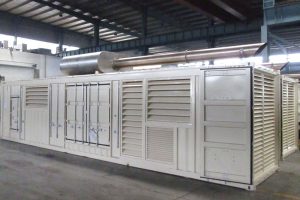

2MVA Cummins unit packaged in application specific high cube container (from OEM container manufacturer)

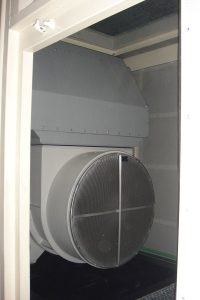

Rear view of 690V alternator with air-air intercooler (IP-55)

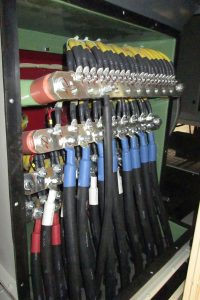

Typical alternator cable terminations

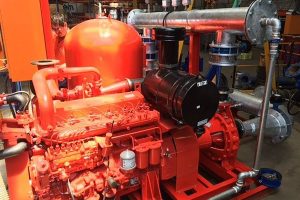

Auto-start diesel powered fire skid with electric 'pressure maintenance' pump
